Clawfoot Tub Enclosure Shower System P0403 | Strom Living

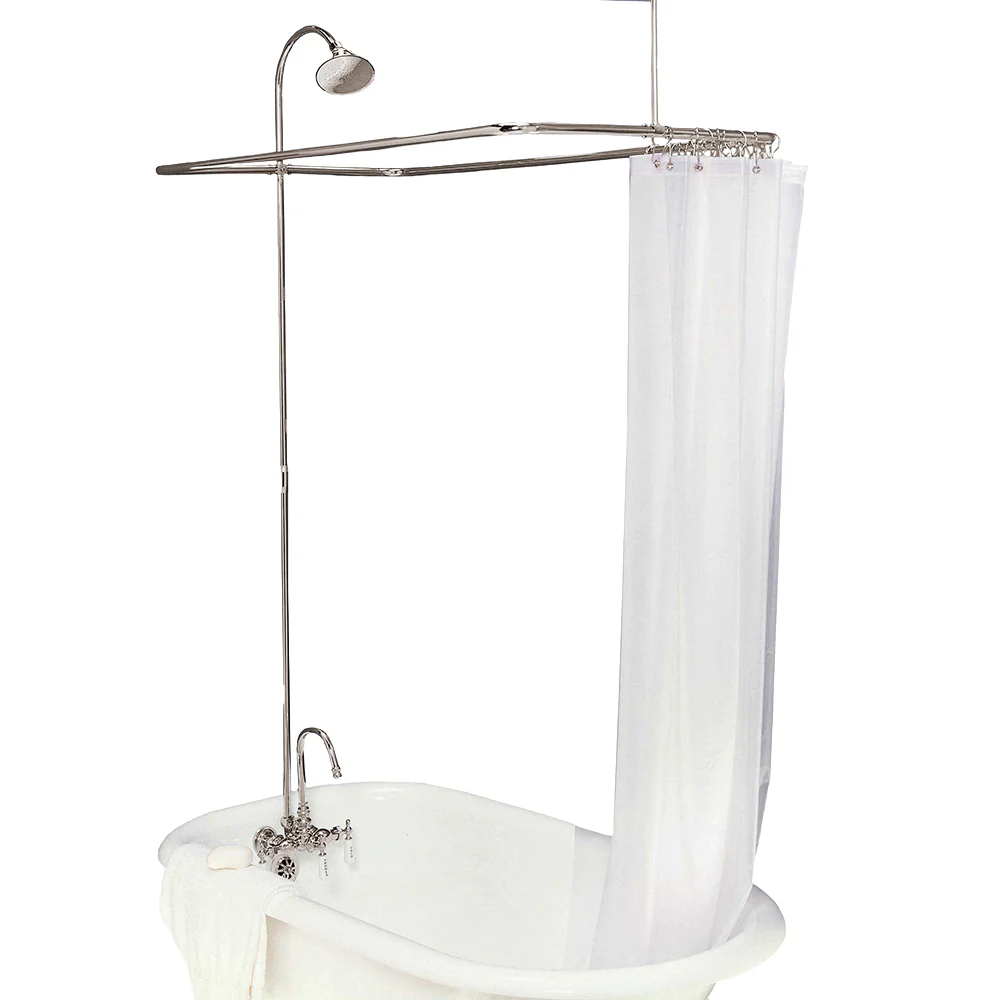

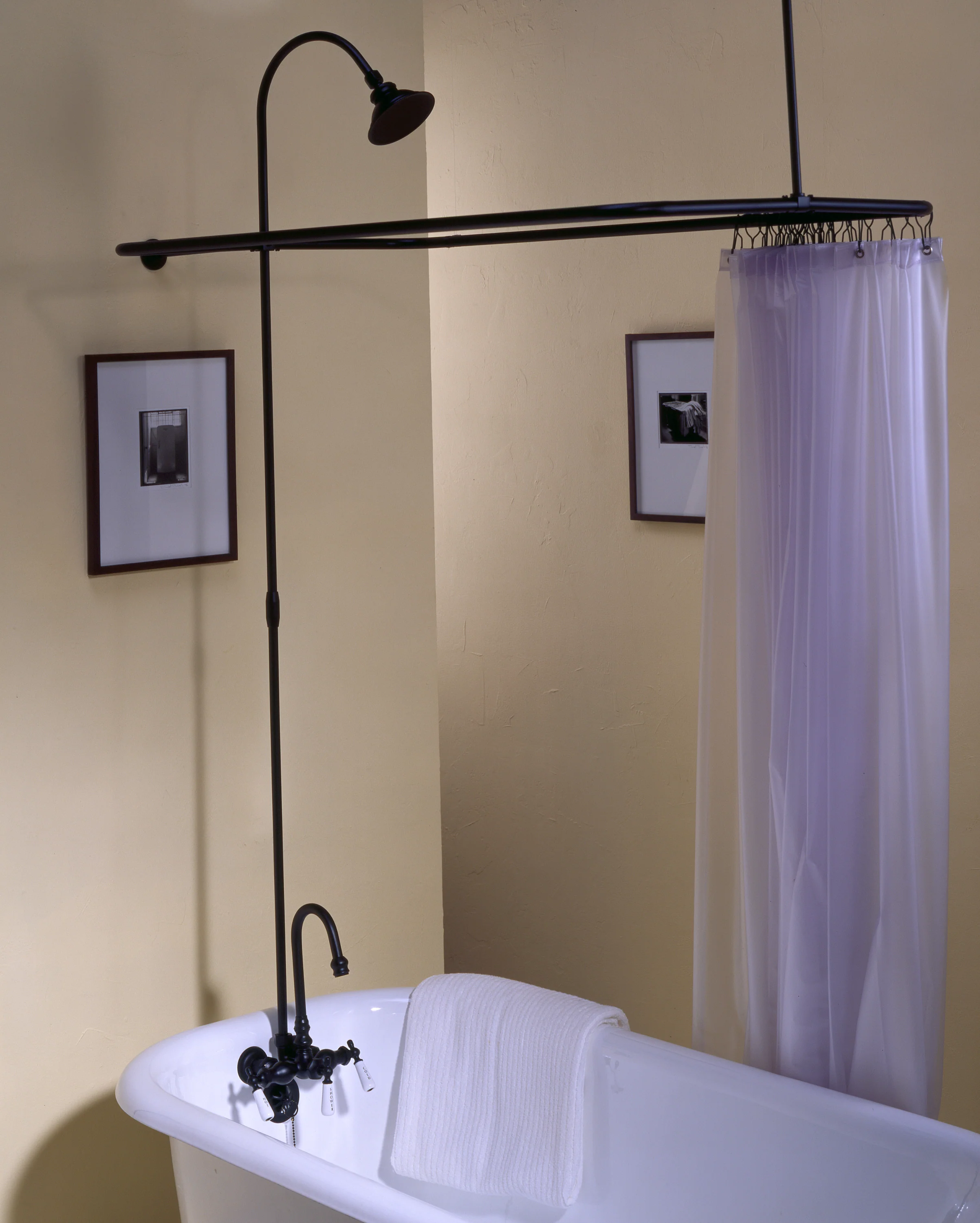

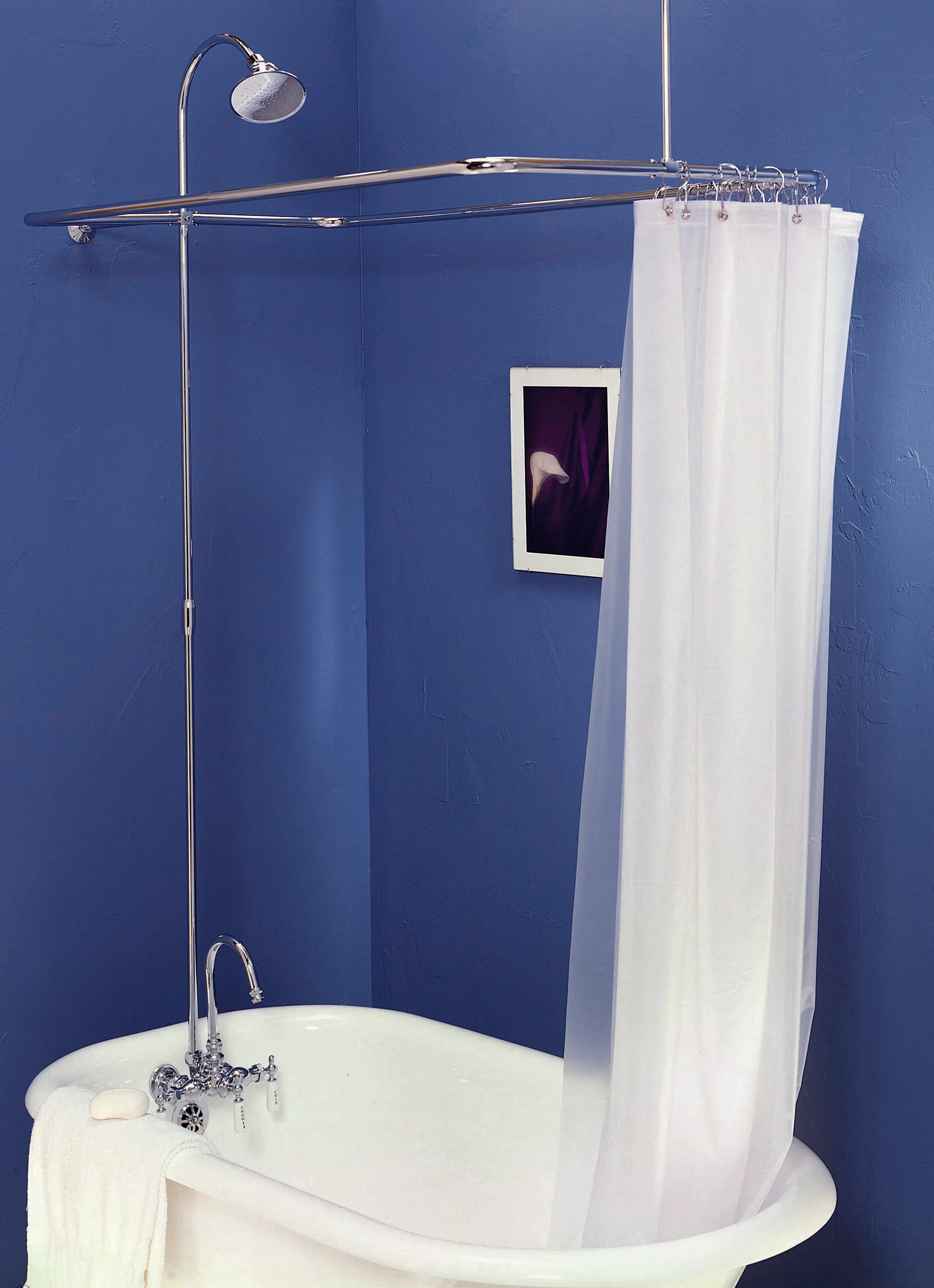

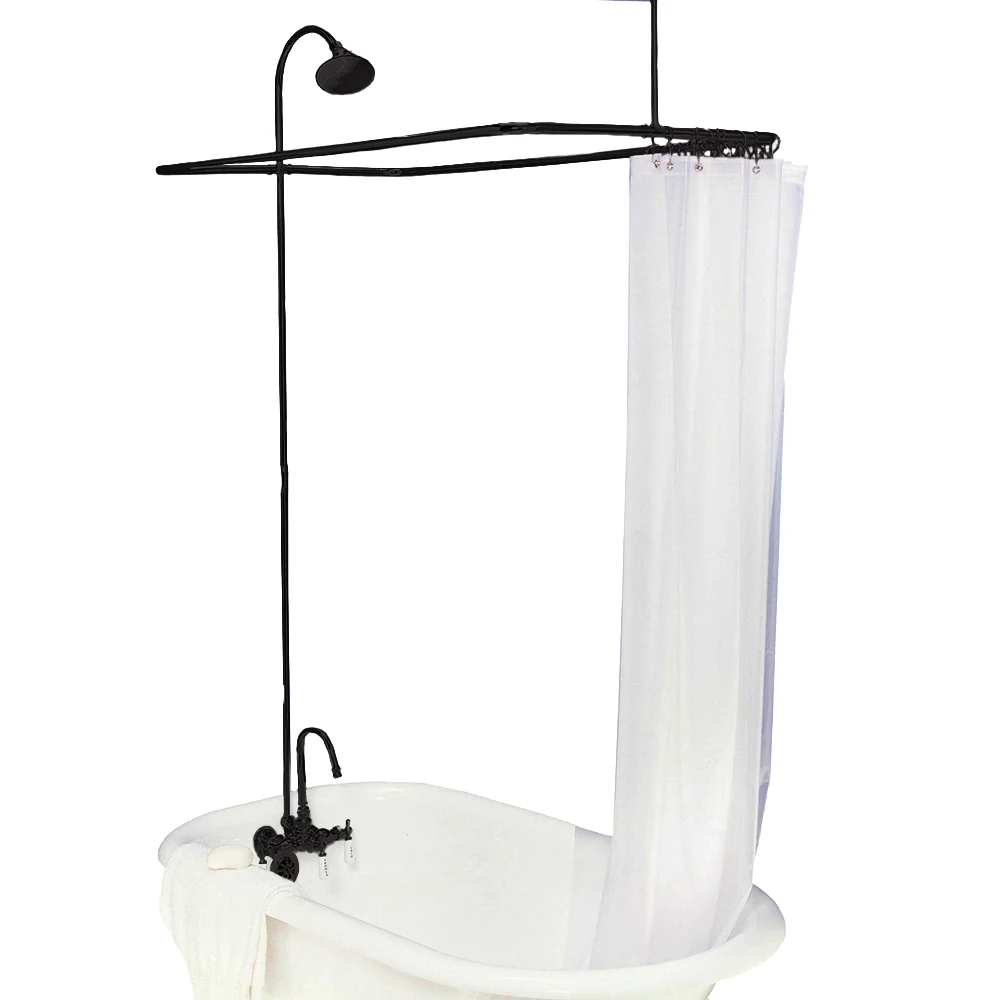

Upgrade your clawfoot tub with this complete enclosure shower system featuring a gooseneck tub filler, extended enclosure ring, and overhead shower. Designed for 3 3/8" center connections, this system combines a classic clawfoot tub shower enclosure with modern shower functionality.

The system includes a gooseneck tub filler with integrated diverter, allowing you to easily switch between tub filling and the overhead shower. The extended 57" x 31" enclosure ring provides generous space for shower curtains, making it ideal for larger clawfoot tubs and traditional bathroom layouts.

Features

• Complete clawfoot tub shower enclosure system
• Gooseneck tub filler with integrated diverter
• Extended 57" x 31" enclosure ring for full curtain coverage
• Lever handles for smooth water control
• Water-efficient 1.75 GPM shower head
• Solid brass construction for durability
• Designed for 3 3/8" center tub faucet connections

Includes

• 3 3/8" Center Faucet Body
• Gooseneck Tub Filler with Diverter
• 45" x 25" Enclosure Ring
• 57" x 31" Extended Enclosure Ring
• Shower Riser
• Shower Head
• 12" Support Brace
• 36" Support Brace
• Supply Nuts & Washers
• Lockdown Nuts

Specifications

• Valve Body Center-to-Center: 3 3/8"
• Connection: 1/2" IPS
• Thread Standard: 1/2-14 NPT
• Flow Rate: 1.75 GPM

Please note: many clawfoot tubs are slightly slanted at the ends. The included riser nut and large cone washer are designed to compensate for this. Hand tighten the riser to the faucet first, align the riser vertically using the wall and ceiling braces, then fully tighten the riser nut.
